Picatinny Rail ZKM
Our products
The assortment of picatinny rails is extended by a rail for small-bore rifle ZKM with a 16mm dovetail groove.
Rail is manufactured according to the MIL-STD 1913 standard. Tightening torgue: 2,4 Nm.
The models are made from two types of materials:
- aluminum alloy Ergal AW 7075
- steel
Angle of inclination: O MOA
- ZKM-16 0MOA Al
- ZKM-16 0MOA Fe
Angle of inclination: 20 MOA
- ZKM-16 20MOA Al
- ZKM-16 20MOA Fe

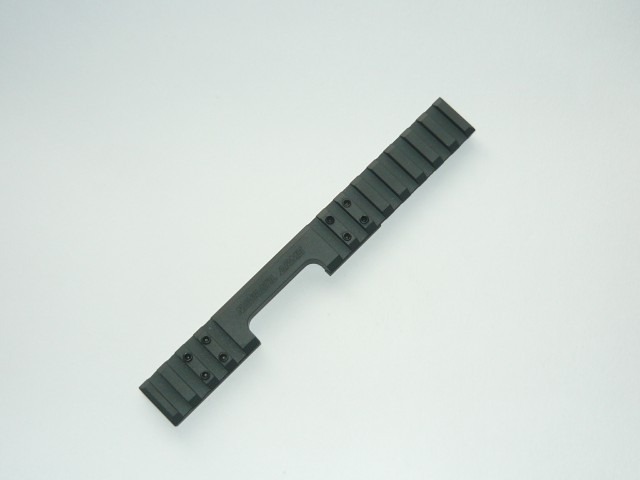

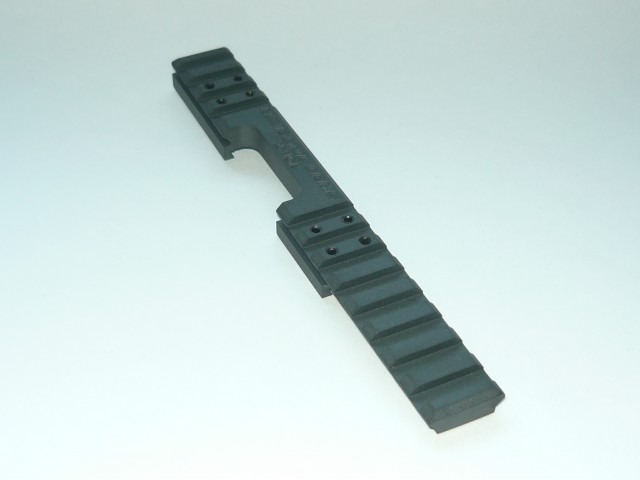

ZKM-16 0MOA Al
Technical data:
- Dovetail groove: 16 mm
- Angle of inclination: O MOA
- Length: 175 mm
- Height: 11 mm
- Width: 23 mm
- Weight: 63 g
- Material: Ergal AW 7075
- Surface finish: sandlasted, anodized
Recommendation:
- It is recommended to secure the screws by glue to prevent unwanted loosening.

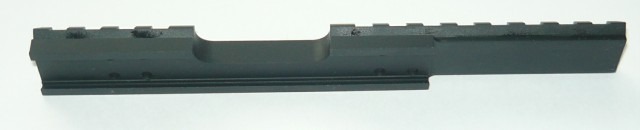

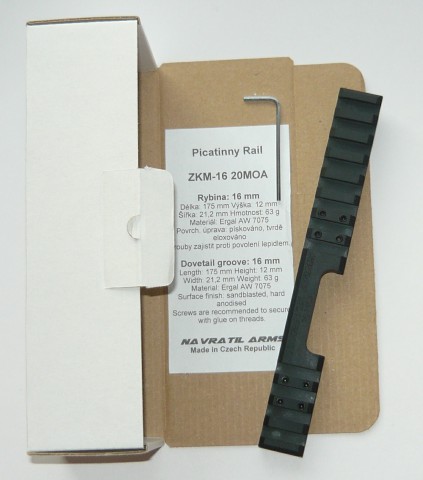

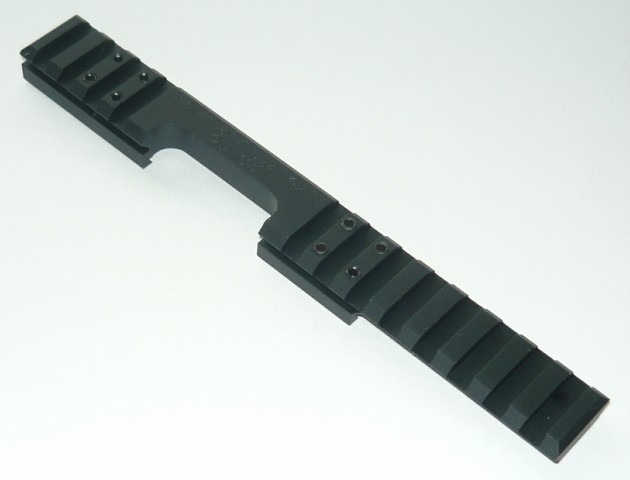

ZKM-16 20MOA Al
Technical data:
- Dovetail groove: 16 mm
- Angle of inclination: 20 MOA
- Length: 175 mm
- Height: 12 mm
- Width: 23 mm
- Weight: 63 g
- Material: Ergal AW 7075
- Surface finish: sandlasted, anodized
Recommendation:
- It is recommended to secure the screws by glue to prevent unwanted loosening.

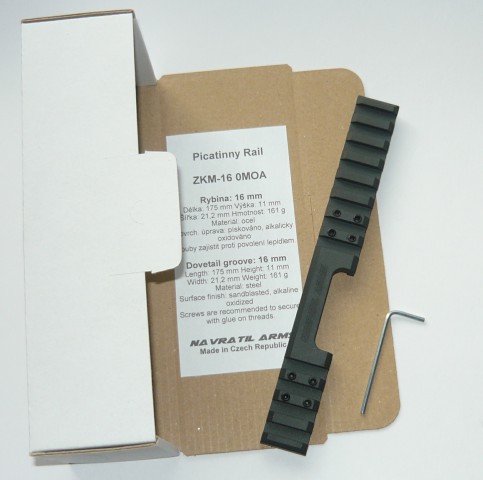

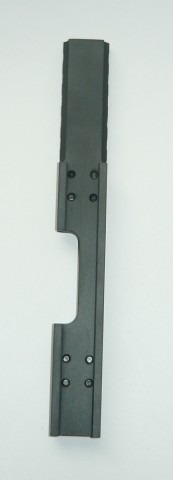

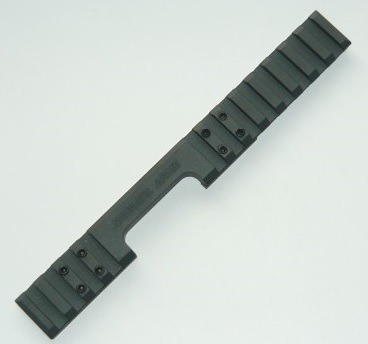

ZKM-16 0MOA Fe
The massive steel rail for small-bore rifle ZKM with a 16mm dovetail groove. The Rail is manufactured according to the MIL-STD 1913 standard. The rail is suitable for heavy optics with night vision.
Technical data:
- Dovetail groove: 16 mm
- Angle of inclination: O MOA
- Length: 175 mm
- Height: 11 mm
- Width: 21,2 mm
- Weight: 161 g
- Material: steel
- Surface finish: sandblasted, alkaline oxidized
Recommendation:
- It is recommended to secure the screws by glue to prevent unwanted loosening.
ZKM-16 20MOA Fe
The massive steel rail for small-bore rifle ZKM with a 16mm dovetail groove. The Rail is manufactured according to the MIL-STD 1913 standard. The rail is suitable for heavy optics with night vision.
Technical data:
- Dovetail groove: 16 mm
- Angle of inclination: 20 MOA
- Length: 175 mm
- Height: 12 mm
- Width: 21,2 mm
- Weight: 172 g
- Material: steel
- Surface finish: sandblasted, alkaline oxidized
Recommendation:
- It is recommended to secure the screws by glue to prevent unwanted loosening.
